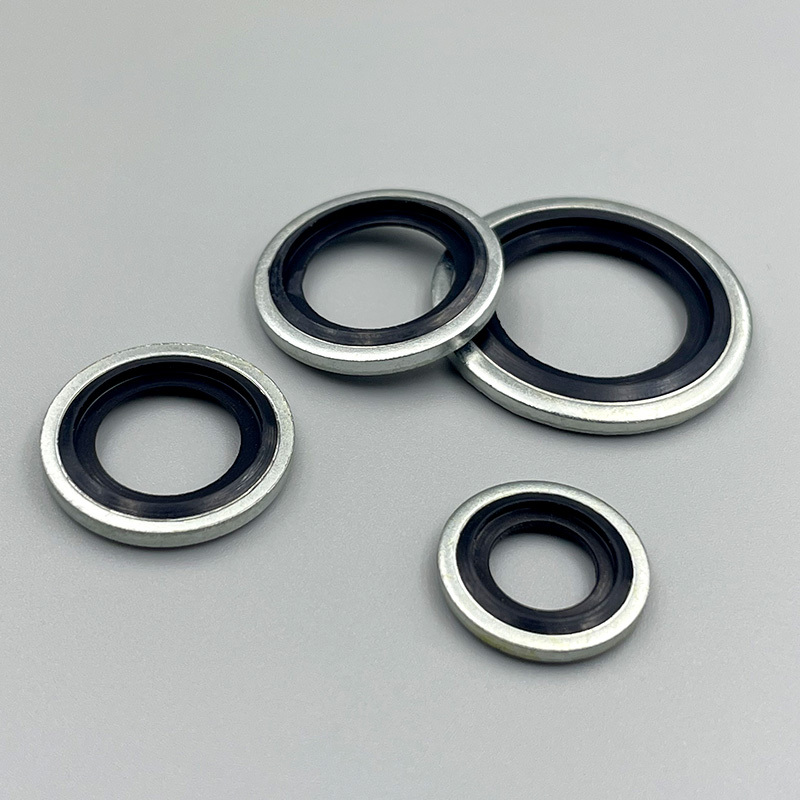

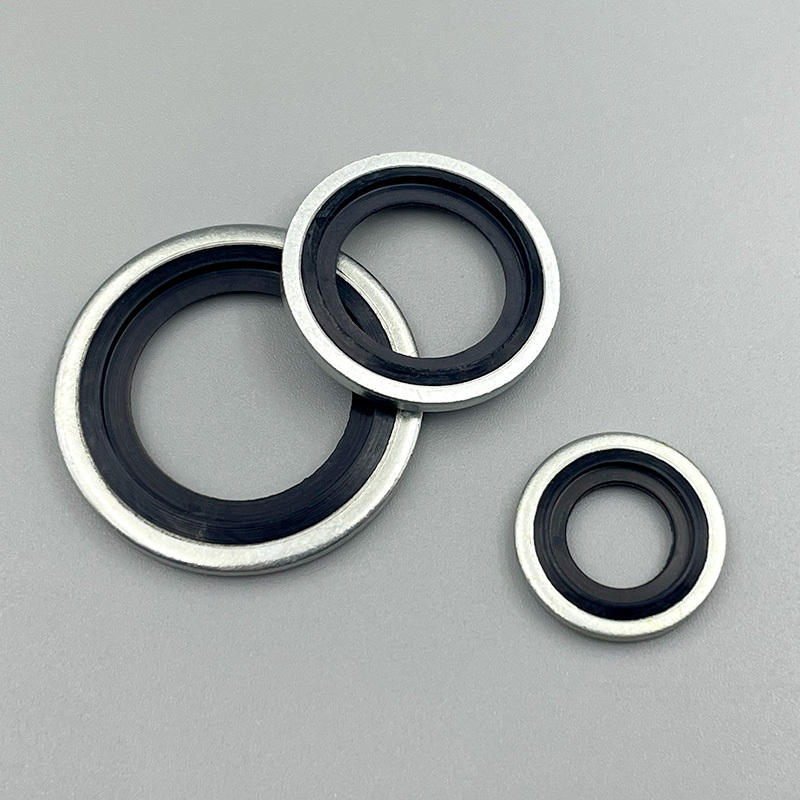

Jb982-77 Combined Sealing Washer Seals Self-Centering Combined Washer
| Plaats van herkomst | Chiaan |
|---|---|
| Merknaam | DZK |
| Certificering | ROHS |
| Modelnummer | JB982-77 |
| Min. bestelaantal | 100 -stcs |
| Prijs | negotiate |
| Verpakking Details | 100 -stcs/tas |
| Levertijd | 7-10 dagen |
| Betalingscondities | L/c, t/t |
| Levering vermogen | 1000000 stcs/maand |
Neem contact met me op voor gratis monsters en coupons.
WhatsAppen:0086 18588475571
wechatten: 0086 18588475571
Skypen: sales10@aixton.com
Als u zich zorgen maakt, bieden we 24-uurs online hulp.
xProductdetails
| Productnaam | Gecombineerde afdichtingsringafdichtingen | Eerste materialen | 304 roestvrij staal, NBR |
|---|---|---|---|
| Temperatuurbereik | -25 ° C tot +100 ° C | Medium | Olie |
| Regerende standaard | JB982-77 | Hardheid | 70 kusthardheid |
| kenmerk | Oliebestendig, slijtvast, waterdicht en stofdichte, hoge temperatuurbestendig |
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving
JB982-77 Combined Sealing Washer | All-Metal Self-Sealing Washer for High-Pressure & High-Temperature Applications
Integral Sealing & Fastening | Aerospace & Hydraulic Standard | Reusable Design
Product Overview
The JB982-77 Combined Sealing Washer is a precision-engineered,Composed of a metal gasket and rubber, it uses oil as the medium and is used for sealing threaded pipe joints and plugs. Its operating pressure is 400 kgf/cm² (39.2 MPa) and operating temperature ranges from -25℃ to 80℃. The gasket is a component placed between the connected part and the nut, usually a flat metal ring. It serves to protect the surface of the connected part from scratches by the nut and distribute the pressure of the nut on the connected part.
Technical Specifications (Typical)
| Parameter | Standard Specification |
|---|---|
| Governing Standard | Jb982-77 |
| Primary Materials | 304 stainless steel, NBR |
| Temperature Range | -25°C to +100°C |
| Hardness | 70 Shore Hardness |
| characteristic | Oil-resistant, wear-resistant, waterproof and dustproof, high-temperature resistant |
Core Features and Advantages
- Two-in-One Design: Combines the functions of a flat washer and a sealing washer, simplifying the assembly process.
- All-Metal Construction: Made of stainless steel, suitable for extreme temperature and pressure environments.
- Pressure-Activated Sealing: The sealing lip deforms under bolt torque to form an airtight or liquid-tight seal.
- Reusable: Can usually be reused multiple times if within the deformation limit, reducing lifecycle costs.
- Wide Compatibility: Resistant to corrosion, radiation, and most highly corrosive chemicals.
Application Fields
It is widely used in hydraulic and pneumatic systems, construction machinery and other fields. It is suitable for working conditions with sealing surface deviation or vibration, ensuring sealing reliability.
